产品特点
- OFIL紫外成像仪系统ROM HD DayCor®ROM HD和ROMlite HD是空中检查的*佳选择。常平架在耐久性、上乘稳定性、多用途应用、多选择光学传感器、无电磁干扰、易于安装和操作方面表现出色。通过广播构建的系统–经验丰富的专业人员，并相应执行
详细介绍

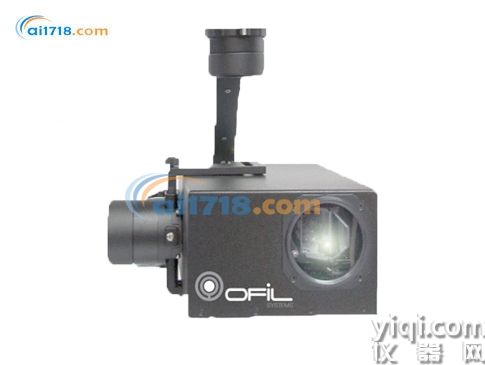

OFIL紫外成像仪系统ROM HD
OFIL紫外成像仪系统ROM HD
DayCor®ROM HD和ROMlite HD是空中检查的*佳选择。常平架在耐久性、上乘稳定性、多用途应用、多选择光学传感器、无电磁干扰、易于安装和操作方面表现出色。通过广播构建的系统–经验丰富的专业人员，并相应执行。
DayCor®ROM HD和ROMlite HD在物理尺寸上有所不同，但具有相同的基本功能。这些都是强大的飞机高速检查解决方案。客户可根据远程检测的需要选择其光学传感器的组合，默认情况下，这些传感器具有**的灵敏度和高清晰度（HD）。ROM模型满足*稳定、准确、功能、方便和定性数据收集的需要。
可选解决方案*多可以有5个传感器，其中一个是Ofil一家的双光谱UV-HD相机、具有扩展百万像素和变焦镜头的照相/摄像机、提供高分辨率彩和红外成像的远程第三代地理记录仪、激光测距仪和其他传感器。ROM万向节易于安装/拆卸，从而满足飞机的多任务需求。
所有框架有效载荷均按照RTCA DO 160G环境标准设计。OFIL紫外成像仪系统ROM HD可用于火灾探测，并可对漏油图进行一些调整。
十多年来，Ofil为世界各地的电力设施、环境组织和消防人员设计和制造机载系统模块。OFIL紫外成像仪系统ROM HD特点：
实用、功能强大、**、价格合理
提高每项工作的效率
Ofil开发了一种多传感器框架，专门用于航空测量和电力设施基础设施检查。ROM HD和ROMlite HD能够录制高分辨率、红外和紫外成像以及静态摄影。所采用的技术在路权检查、火灾和应急管理、绘制火线图、评估蔓延速度和确定热源等方面非常有效。
优良的数据采集
**的稳定架构确保在移动中获得高质量图像，平滑且无抖动。高灵敏度探测器确保数据的准确性。所选的补充技术确保**真实地表示所检查基础设施的真实状态。
符合人体工程学设计的空中检查
技术和资源的投入，加上专业的工艺，造就了有一无二的****的遥控器。这种智能遥控器操作起来非常简单。正如快速移动的工作平台所期望的那样，功能会即时响应命令。OFIL紫外成像仪系统ROM HD技术参数：
UV – OPTICAL PROPERTIES
Sunlight Rejection
Absolute – at all sunlight and all weather conditions, target can be inspected with the sun in the field of view
Minimum Discharge Detection
1pC @ 15 m, Innogy SE – Eurotest, Test Regulation IEC 60270:2000 PD Measurement
Minimum UV Sensitivity
1.9 x 10-18watt/cm²
Minimum RIV Detection
3.6dBµV (RIV) @1MHz@10m
Fields of View H x V
H: 10º – 1.6º | V: 5.6º-0.9º Continuous. UV & visible channels synchronized
Focus
Full manual and auto focus for both UV & Visible channels
UV Zoom
2x (Opt.), 6.25x (Dig.), Slaved to the visible channel, continuous zoom
UV Frames Integration
On | Off
UV Display Colors
Poly chromatic: Red, Green, White, Black, Yellow
Spectral Range
240-280nm
VISIBLE – OPTICAL PROPERTIES
UV/Visible Overlay Accuracy
Deviation less than 1 miliradian
Minimum Visible Light Sensitivity
0.1 Lux
Video Standard
HD
Rapid Visible Zoom
25x optical & digital, continuous
COMMUNICATION
conmmunication
1GB Ethernet, RS232, Wi-Fi
CONTROL & OPERATION
Control Functions
1GB Ethernet, RS232, USB, Inbound/Outbound, Wi-Fi
DISPLAY
N/A
ENVIRONMENT
Vibration and Shock
ETSI EN 300 019-2-5 V3.0.0 (2002-12), IEC 60068-2-64
IMAGING PERFORMANCE
Video Interface
HDMI
Control Functions
1GB Ethernet, RS232, USB, Inbound/Outbound, Wi-Fi
UV & Visible Output Combination Modes
Combine (UV & Visible), UV only, visible only
MEDIA CAPTURE & STORAGE
Video Out Standard
HD 720p 60fps
Video Format
MOV
Image Format
JPG
Storage
FAT-32, exFAT
IN/OUTPUT INTERFACES
PHYSICAL CHARACTERISTICS
Storage and Operation Temp
-’20ºC up to +55ºC | -4ºF up to +131ºF
Block Camera Weight
1650 gr | 3.10lb
Camera Core Weight
1265 gr | 2.12lb
Camera with Enclosure Dimensions L x W x H
L259 x W128 x H117 mm | L10.2” x W5.03” x H4.6”
Camera Core Dimensions L x W x H
L255 x W124 x H87mm | L 10” x W4.88” x H3.42”
Vibration and Shock
ETSI EN 300 019-2-5 V3.0.0 (2002-12), IEC 60068-2-64
POWER SUPPLY
Nominal Power Supply & Consumption
12V DC, 12 Watts
TURRET UNIT
Configuration:
Four (4) Axis Active Gyro Stabilization.
Stabilization
360° Continuous Rotation
Coverage El
+9° to -189° (can be increased for final)
Frontal Area
2.25 sq ft
Weight:
34Kg | 74.7lb
Power Req.:
20-34 VDC, MAX power draw 395W
Commands:
Cage, Stow, on screen symbols, etc.Configuration:
Stabilization:
< 10micro Rad
IR HD CAMERA
Description
High resolution thermographic systems, based on an uncooled microbolometer FPA detector of the latest generation, built for monitoring and measurement tasks. IR camera produces brilliant high-quality thermographic images with 16 bits, which allows unprecedented efficiency, especially when capturing smallest details on large object surfaces. With its max frame rate of 240 Hz extremely quick thermographic changes can be recognized reliably.
Detector
Uncooled Microbolometer Focal Plane Array
FOV, telephoto lens
16° x 12° Focal distance 60mm
IR Pixels – Array Size
1024 x 768 pixels
Spectral Range
7.5-14μm
Focus
Manual and Auto Focus
Digital Zoom
Yes
Temperature Measuring Range
-40º to+ 1200ºC
Measurement Accuracy
+/-1.5ºC or 1.5%
Frame rate
30Hz (full frame) – 240Hz (1024 x 96)
Dynamic range
16 Bit
DayCor®ROM HD和ROMlite HD是空中检查的*佳选择。常平架在耐久性、上乘稳定性、多用途应用、多选择光学传感器、无电磁干扰、易于安装和操作方面表现出色。通过广播构建的系统–经验丰富的专业人员，并相应执行。
DayCor®ROM HD和ROMlite HD在物理尺寸上有所不同，但具有相同的基本功能。这些都是强大的飞机高速检查解决方案。客户可根据远程检测的需要选择其光学传感器的组合，默认情况下，这些传感器具有**的灵敏度和高清晰度（HD）。ROM模型满足*稳定、准确、功能、方便和定性数据收集的需要。
可选解决方案*多可以有5个传感器，其中一个是Ofil一家的双光谱UV-HD相机、具有扩展百万像素和变焦镜头的照相/摄像机、提供高分辨率和红外成像的远程第三代地理记录仪、激光测距仪和其他传感器。ROM万向节易于安装/拆卸，从而满足飞机的多任务需求。
所有框架有效载荷均按照RTCA DO 160G环境标准设计。OFIL紫外成像仪系统ROM HD可用于火灾探测，并可对漏油图进行一些调整。
十多年来，Ofil为世界各地的电力设施、环境组织和消防人员设计和制造机载系统模块。OFIL紫外成像仪系统ROM HD特点：
实用、功能强大、**、价格合理
提高每项工作的效率
Ofil开发了一种多传感器框架，专门用于航空测量和电力设施基础设施检查。ROM HD和ROMlite HD能够录制高分辨率、红外和紫外成像以及静态摄影。所采用的技术在路权检查、火灾和应急管理、绘制火线图、评估蔓延速度和确定热源等方面非常有效。
优良的数据采集
**的稳定架构确保在移动中获得高质量图像，平滑且无抖动。高灵敏度探测器确保数据的准确性。所选的补充技术确保**真实地表示所检查基础设施的真实状态。
符合人体工程学设计的空中检查
技术和资源的投入，加上专业的工艺，造就了有一无二的****的遥控器。这种智能遥控器操作起来非常简单。正如快速移动的工作平台所期望的那样，功能会即时响应命令。OFIL紫外成像仪系统ROM HD技术参数：
UV – OPTICAL PROPERTIES
Sunlight Rejection
Absolute – at all sunlight and all weather conditions, target can be inspected with the sun in the field of view
Minimum Discharge Detection
1pC @ 15 m, Innogy SE – Eurotest, Test Regulation IEC 60270:2000 PD Measurement
Minimum UV Sensitivity
1.9 x 10-18watt/cm²
Minimum RIV Detection
3.6dBµV (RIV) @1MHz@10m
Fields of View H x V
H: 10º – 1.6º | V: 5.6º-0.9º Continuous. UV & visible channels synchronized
Focus
Full manual and auto focus for both UV & Visible channels
UV Zoom
2x (Opt.), 6.25x (Dig.), Slaved to the visible channel, continuous zoom
UV Frames Integration
On | Off
UV Display Colors
Poly chromatic: Red, Green, White, Black, Yellow
Spectral Range
240-280nm
VISIBLE – OPTICAL PROPERTIES
UV/Visible Overlay Accuracy
Deviation less than 1 miliradian
Minimum Visible Light Sensitivity
0.1 Lux
Video Standard
HD
Rapid Visible Zoom
25x optical & digital, continuous
COMMUNICATION
conmmunication
1GB Ethernet, RS232, Wi-Fi
CONTROL & OPERATION
Control Functions
1GB Ethernet, RS232, USB, Inbound/Outbound, Wi-Fi
DISPLAY
N/A
ENVIRONMENT
Vibration and Shock
ETSI EN 300 019-2-5 V3.0.0 (2002-12), IEC 60068-2-64
IMAGING PERFORMANCE
Video Interface
HDMI
Control Functions
1GB Ethernet, RS232, USB, Inbound/Outbound, Wi-Fi
UV & Visible Output Combination Modes
Combine (UV & Visible), UV only, visible only
MEDIA CAPTURE & STORAGE
Video Out Standard
HD 720p 60fps
Video Format
MOV
Image Format
JPG
Storage
FAT-32, exFAT
IN/OUTPUT INTERFACES
PHYSICAL CHARACTERISTICS
Storage and Operation Temp
-’20ºC up to +55ºC | -4ºF up to +131ºF
Block Camera Weight
1650 gr | 3.10lb
Camera Core Weight
1265 gr | 2.12lb
Camera with Enclosure Dimensions L x W x H
L259 x W128 x H117 mm | L10.2” x W5.03” x H4.6”
Camera Core Dimensions L x W x H
L255 x W124 x H87mm | L 10” x W4.88” x H3.42”
Vibration and Shock
ETSI EN 300 019-2-5 V3.0.0 (2002-12), IEC 60068-2-64
POWER SUPPLY
Nominal Power Supply & Consumption
12V DC, 12 Watts
TURRET UNIT
Configuration:
Four (4) Axis Active Gyro Stabilization.
Stabilization
360° Continuous Rotation
Coverage El
+9° to -189° (can be increased for final)
Frontal Area
2.25 sq ft
Weight:
34Kg | 74.7lb
Power Req.:
20-34 VDC, MAX power draw 395W
Commands:
Cage, Stow, on screen symbols, etc.Configuration:
Stabilization:
< 10micro Rad
IR HD CAMERA
Description
High resolution thermographic systems, based on an uncooled microbolometer FPA detector of the latest generation, built for monitoring and measurement tasks. IR camera produces brilliant high-quality thermographic images with 16 bits, which allows unprecedented efficiency, especially when capturing smallest details on large object surfaces. With its max frame rate of 240 Hz extremely quick thermographic changes can be recognized reliably.
Detector
Uncooled Microbolometer Focal Plane Array
FOV, telephoto lens
16° x 12° Focal distance 60mm
IR Pixels – Array Size
1024 x 768 pixels
Spectral Range
7.5-14μm
Focus
Manual and Auto Focus
Digital Zoom
Yes
Temperature Measuring Range
-40º to+ 1200ºC
Measurement Accuracy
+/-1.5ºC or 1.5%
Frame rate
30Hz (full frame) – 240Hz (1024 x 96)
Dynamic range
16 Bit
-
