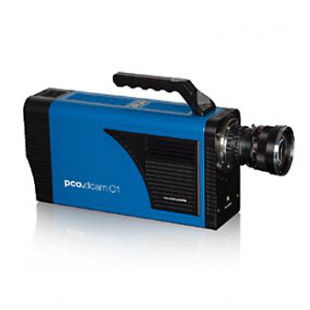

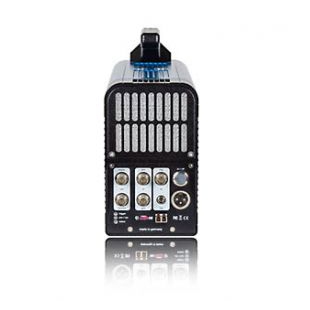

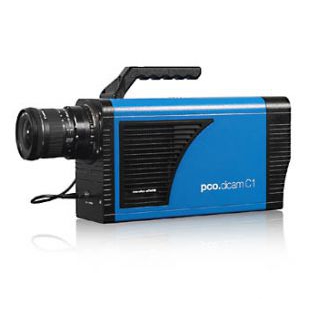

德国pco.dicam C1 16位像增强型相机
- 品牌：德国PCO
- 型号： pco.dicam C1
- 产地：德国
- 供应商报价： 面议
-
广州市元奥仪器有限公司
更新时间：2024-04-26 09:54:37 -
企业性质一般经销商
入驻年限第4年
营业执照已审核
- 同类产品像增强器相机(33件)
联系方式：邓铭020-83212031
联系我们时请说明在仪器网（www.yiqi.com）上看到的!
-
为您推荐
- 详细介绍
产品介绍：
德国Excelitas PCO公司是著名的专业生产高速相机，超高速相机和高性能相机的公司。众多著名科研机构，工业，大学，都在使用该公司的产品。
pco.dicam C1 16位像增强器相机 采用25mm直径大小的像增强器,配搭一个16位的sCMOS成像模块，相机具备16 bit 动态范围，4百万像素，信噪比和单光子探测能力。门控时间可达4ns, 双曝光快门间隔时间300ns , 相机通过高速序列光纤数据连接系统至PC。相机可以通过光或电子触发 。
广州市元奥仪器作为德国Excelitas PCO公司高速摄像机中国总代理商，热情为各位客户提供产品的方案设计与报价。
type of sensor
scientific CMOS (sCMOS)
resolution (h x v)
2048 x 2048 active pixel
pixel size (h x v)
6.5 μm x 6.5 μm
sensor format / diagonal
13.3 mm x 13.3 mm / 18.8 mm
shutter mode
single image
double image
MTF1
76.9 lp/mm (theoretical)
fullwell capacity
15,000 e- for P46 phosphor
30,000 e- for P43 phosphor
readout noise2
1.1 med / 1.5 rms e- single image
2.2 med / 2.5 rms e- double image
dynamic range
13,600 : 1 (82.7 dB) for P46 phosphor
27,200 : 1 (88.7 dB) for P43 phosphor
quantum efficiency
58 % for P43 peak emission @ 545 nm
57 % for P46 peak emission @ 530 nm
spectral range
300 nm ... 1000 nm
dark current3
< 0.6 e-/pixel/s @ 7 °C
DSNU
1.0 rms e-
PRNU
< 0.6 %
anti blooming factor
1 : 10,000
pco.dicam C1
intensified 16 bit sCMOS camera
Introduced in 2019 as a completely new development, the pco.dicam C1 marks the reference for high-end intensified imaging. More than 30 years of experience in intensified camera systems combined with our pioneering sCMOS knowledge enable high-performance in image quality and optical gating.
The pco.dicam C1 is the first intensified camera system that allows you to harness the full power of the sCMOS sensor. Unique is the optical coupling of the high-resolution 25 mm image intensifier to the 16 bit sCMOS sensor via an efficient tandem lens. With shortest exposure times and up to 106 fps at full 4.2 MPixel resolution you can even detect single photons.
The 10G fiber optic data interface (Camera Link HS) guarantees you an uncompressed and secure data transfer. With the latest standard of high-performance data interfaces, you can bridge long distances via fiber optic cable.
注：产品信息若有变更恕不另行通知
- 产品优势
- pco.dicam C1 16位像增强器相机 采用25mm直径大小的像增强器,配搭一个16位的sCMOS成像模块，相机具备16 bit 动态范围，4百万像素，信噪比和单光子探测能力。门控时间可达4ns, 双曝光快门间隔时间300ns , 相机通过高速序列光纤数据连接系统至PC。相机可以通过光或电子触发 。
